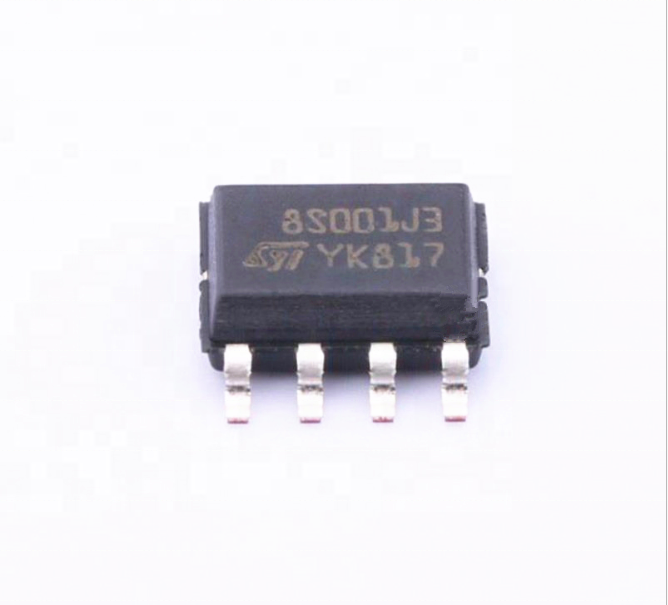

STM8S001J3M3

  主流超值系列8位MCU，具有8 KB Flash和16 MHz CPU

• 内核

• 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline

• Extended instruction set

• Memories

• Program memory: 8-Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles

• RAM: 1 Kbyte

• Data memory: 128-byte true data EEPROM; endurance up to 100 k write/erase cycles

• Clock, reset and supply management

• Low-power modes (wait, active-halt, halt)

• Switch-off peripheral clocks individually

• Permanently active, low-consumption power-on and power-down reset

• External clock input

• Internal, user-trimmable 16 MHz RC

• Internal low-power 128 kHz RC

• 2.95 V to 5.5 V operating voltage

• Flexible clock control, 3 master clock sources

• Clock security system with clock monitor

• Power management

• Interrupt management

• Nested interrupt controller with 32 interrupts

• Up to 5 external interrupts

• 计时器

• Advanced control timer: 16-bit, 2 CAPCOM channels, 2 outputs, dead-time insertion and flexible synchronization

• 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)

• 8-bit basic timer with 8-bit prescaler

• Auto wakeup timer

• Window and independent watchdog timers

• Communications interfaces

• UART, SmartCard, IrDA, LIN master mode

• SPI unidirectional interface up to 8 Mbit/s (master simplex mode, slave receiver only)

• I2C interface up to 400 Kbit/s

• Analog to digital converter (ADC)

• 10-bit ADC, ± 1 LSB ADC with up to 3 multiplexed channels, scan mode and analog watchdog

• Internal reference voltage measurement

• I/Os

• Up to 5 I/Os including 4 high-sink outputs

• Highly robust I/O design, immune against current injection

• Development support

• Embedded single-wire interface module (SWIM) or fast on-chip programming and non-intrusive debugging
