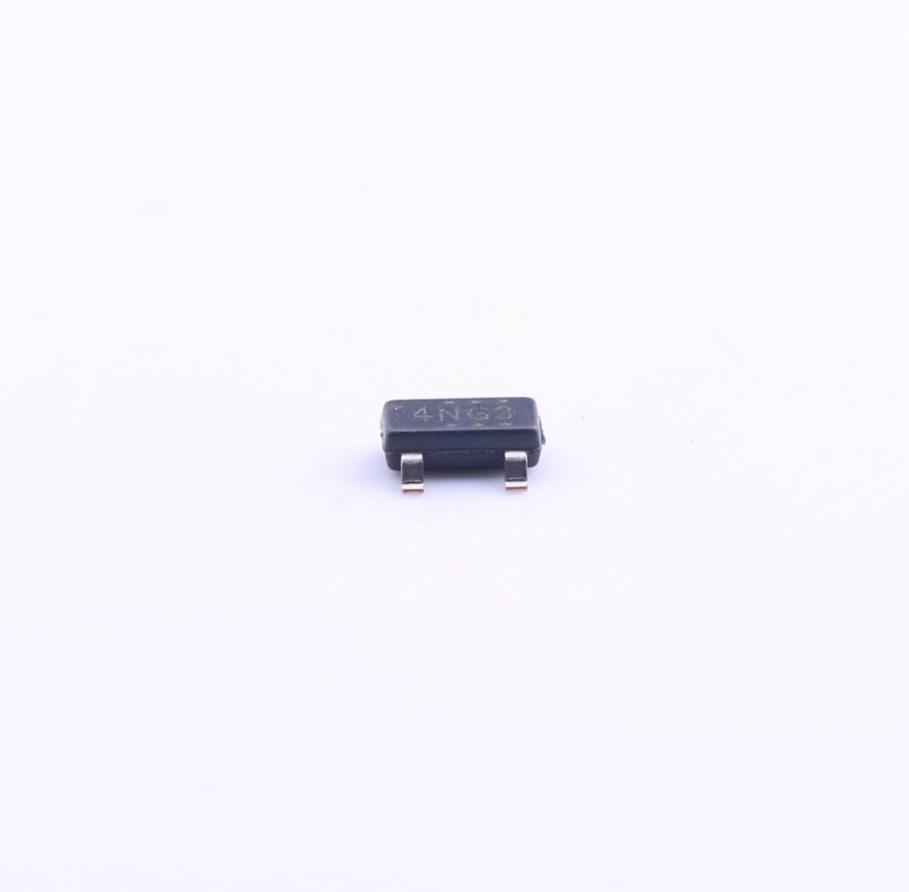

ST1S12GR

分类：功率器件（MOSFET / IGBT）

点击：475

发布时间：2022-02-26 20:53

简介：ST1S12GR 器件型号：ST1S12GR 厂商名称：ST(意法半导体) 欧盟限制某些有害物质的使用 Compliant ECCN (US) EAR99 Part Status Active HTS 8542.39.00.01 类型 Type Synch

详情 | PRODUCT DETAILS

欧盟限制某些有害物质的使用	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
类型 Type	Synchronous Step Down
输出类型 Output Type	Adjustable
Switching Frequency (kHz)	1700(Typ)
Switching Regulator	Yes
Number of Outputs	1
Maximum Output Current (A)	0.7(Min)
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.5 to 5.5
Typical Quiescent Current (uA)	500
Line Regulation	0.05%(Typ)
Load Regulation	0.0025%(Typ)
Efficiency (%)	90(Typ)
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
系列 Packaging	Tape and Reel
Pin Count	5
Standard Package Name	SOT-23
Supplier Package	TSOT-23
Mounting	Surface Mount
Package Height	1(Max)
Package Length	2.9
Package Width	1.6
PCB changed	5
Lead Shape	Gull-wing

Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.7A 5-Pin TSOT-23 T/R
